- Place of Origin:CN;GUA
- Application:Sports Stadiums
- Light Source:LED
- Warranty(Year):1-year
- Input Voltage(V):AC100V-240V
- Lamp Power(W):80
- Lamp Luminous Flux(lm):6798
- Working Lifetime(Hour):50000
- Brand Name:Daiseya
- Light Source:LED
- IP Rating:Ip20
- Product name:ML-80-Beam DMX control LED beam moving head
- Warranty:1 year
- Control mode:DMX512 stand alone
- DMX Channel:13CH,11CH
- Voltage:100v-264v
- Beam angle:15,25,45,60 degree optional
- 1 GOBO wheel:17 gobos+white
- 1 Color wheel:13 colors +white

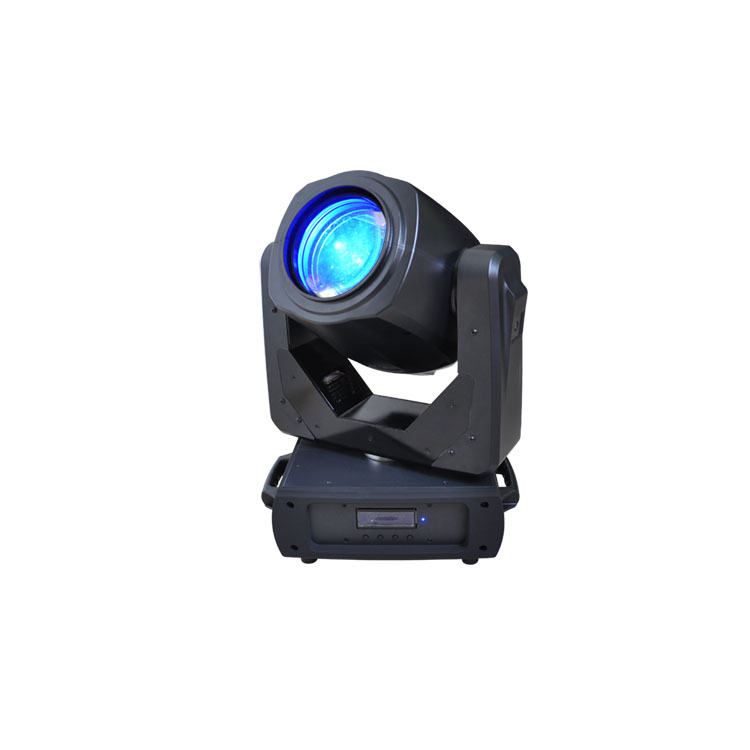

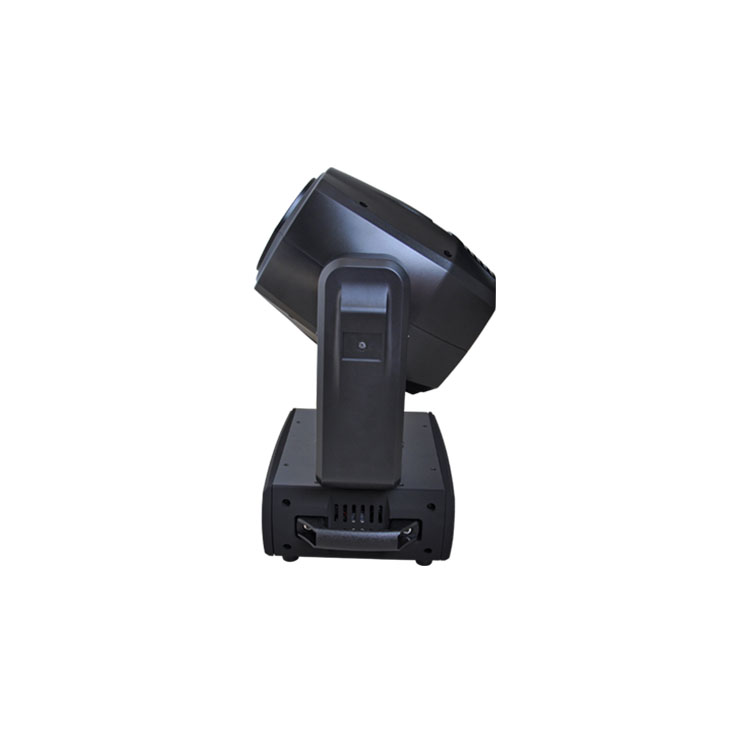

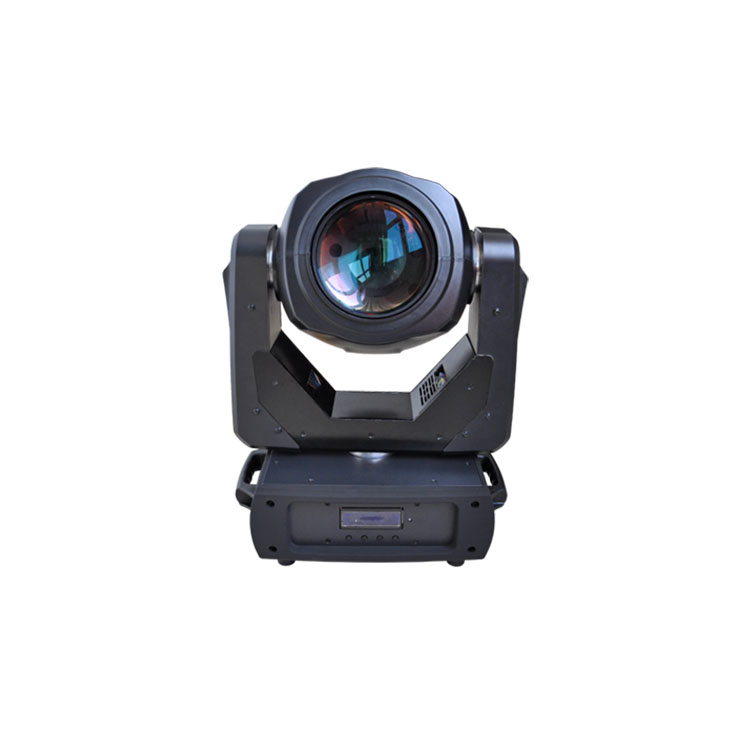

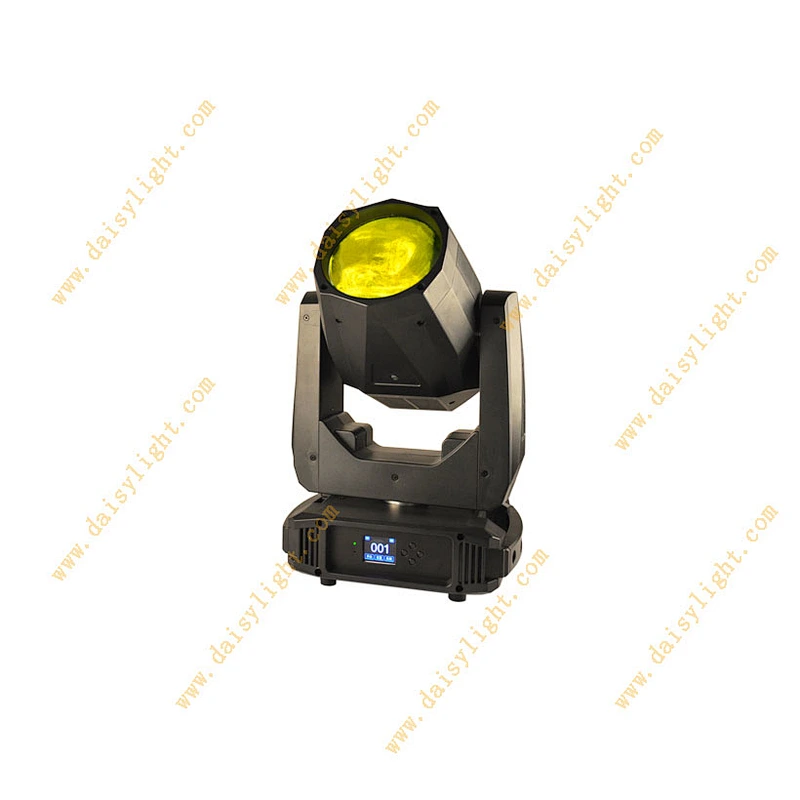

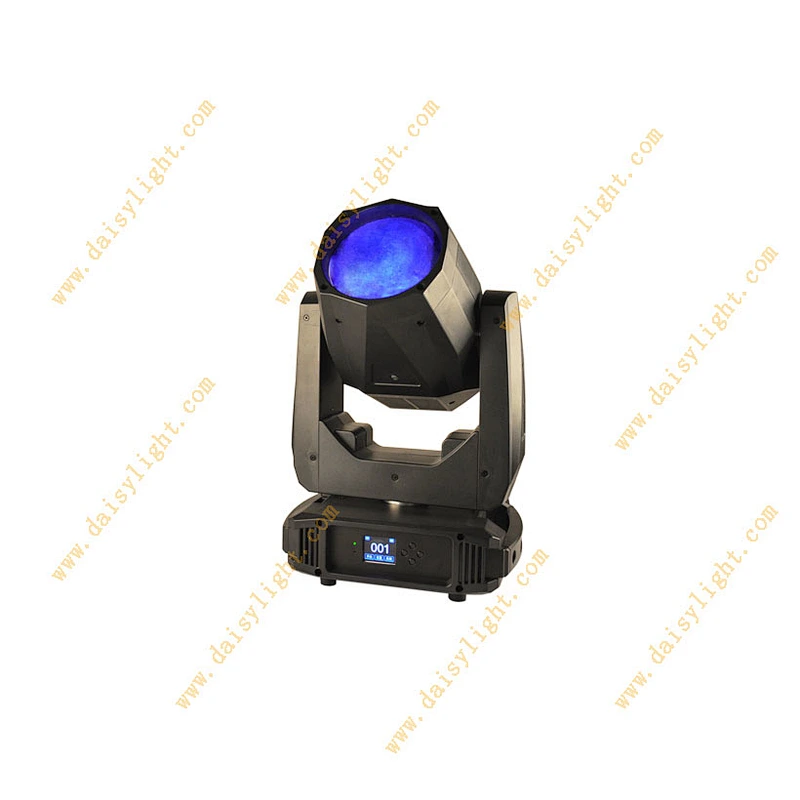

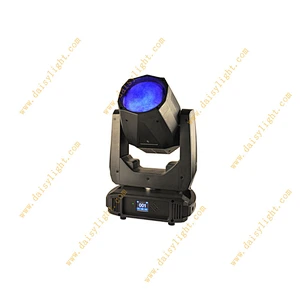

ML-80-Beam DMX control LED beam moving head
Beam angle: | 3 degree | Light Source: | 80W LED |
PowerConsume: | 135W | Control Signal: | DMX512,sound activated,Auto run |
PVM Dimmer: | >600Hz(16666 grades) | Control mode: | stand alone/master and slave |
Channel: | 13CH,11CH | Function Effect: | dimmer, strobe, gradual change |
Input voltage:AC 100V-240V/50~60HZ
Power Consumption:135W
Lamp Type:80W LED*1PCS

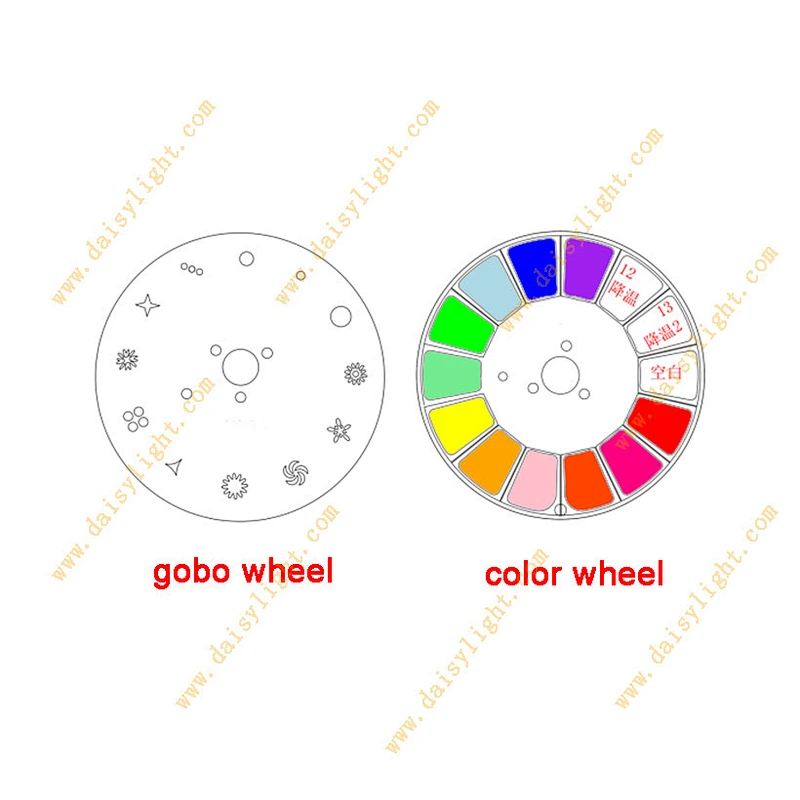

1 fixed GOBO wheel: 11 gobo + white
1 color wheel: 13 colors + white
2 prisms: 8 prism + rotation, 16 prism + rotation
1 focus lens
Other: 1 atomization, 1 colorful mirror
Beam angle: 3 degrees
Cooling method: Natural Convection (automatic adjustment of wind speed according to temperature)
Rotate 540 degrees horizontally, 270 degrees vertically, equipped with shift correction
Channel mode: standard 16 channel / extended 20 channel mode
Reset calibration: -128~+127 (X-axis, Y-axis, color wheel, pattern plate, focus, prism 1, prism 2, atomization)

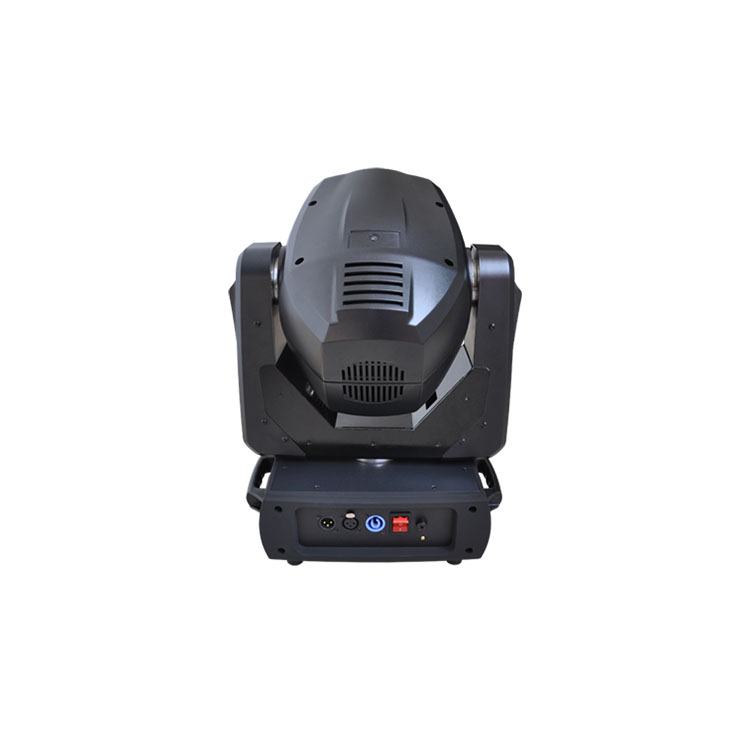

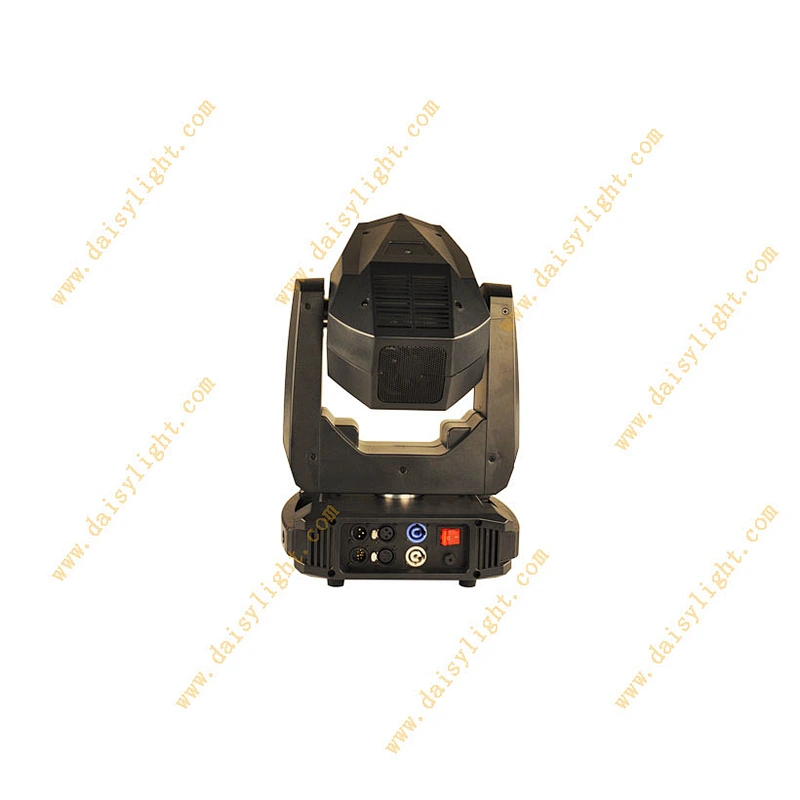

Data input / output: 3-pin XLR + 5Q pin XLR connector IN / OUT
Sensor monitoring: real-time display of each reset condition
Protection rating: IP20
Size: 32*22.5*50mm
Net weight: 11.31KG

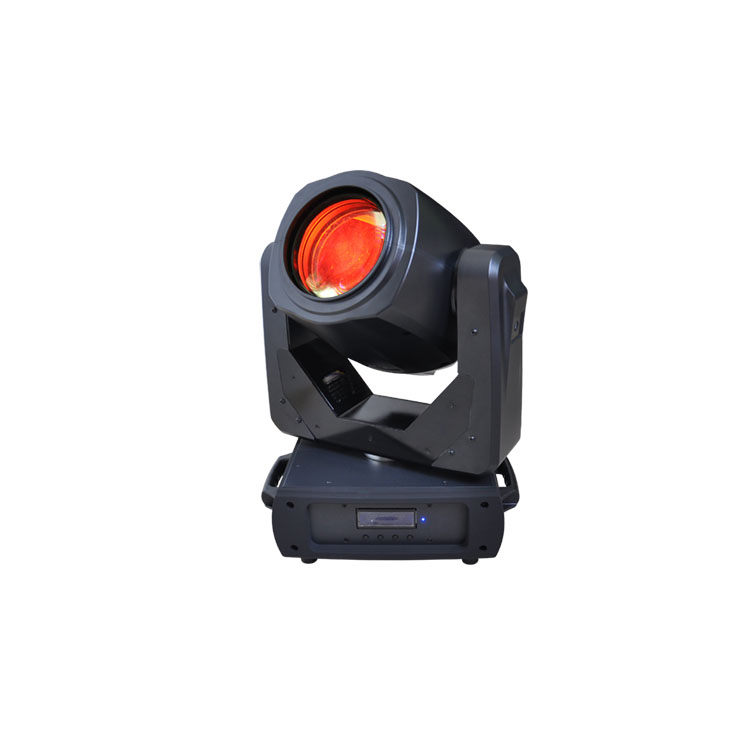

ML-80-Beam DMX control LED beam moving head

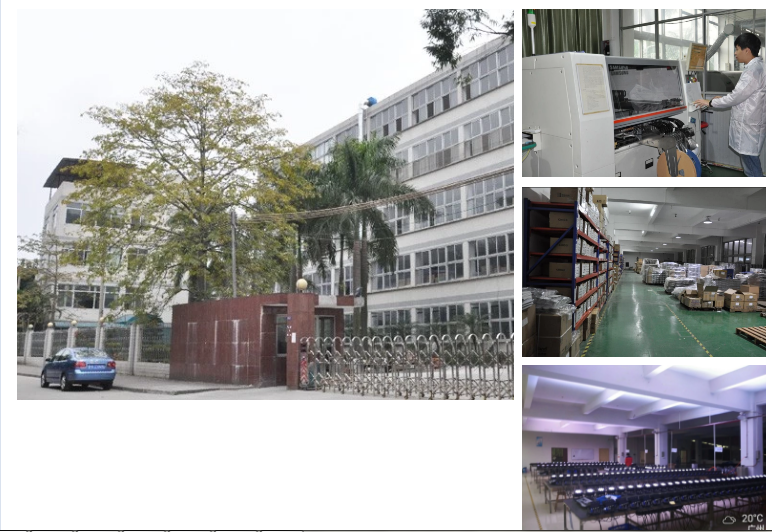

About us

Dezhi Group Co.,LIMITED is a high-tech manufacturer in LED stage lighting equipment and illumination products. Nowadays, we have nearly 10,000 square meters standard workshop and about 200 employees, 1/4 of them are R&D engineers and technicians.
The main LED stage lighting products we provide include LED PAR can light, LED bar light, LED wall washer light, DMX LED tube, LED curtain, LED moving head light, LED dancing floor, LED DJ effect light, audience light, LED day light, LED panel, and DMX controller, etc.
Dezhi Group Co.,LIMITED is being used at the 2010 World Expo in Shanghai. Meanwhile, 90% of our products have been exported to more than 80 countries in the world. Dezhi Group Co.,LIMITED has been highly praised by our partners all over the world after years of continual development. Dezhi Group Co.,LIMITED also holds certificates such as ISO9001, Chinese Export License, CE, RoHs. Quality of our products has reached international advanced level.
Talent is the survival and development of an enterprise. In order to keep the high competive in the international market, Dezhi Group Co.,LIMITED actively absorbs and innovates international advanced technology by means of talent accumulation and technological advantages in R&D. Dezhi Group Co.,LIMITED constantly develops new products every month.
Dezhi Group Co.,LIMITED taking"Honest, Innovative, Pragmatic and High-efficient"as the purpose to provide the most professional LED products to all our partners.
Projects:

Our Exihibitions

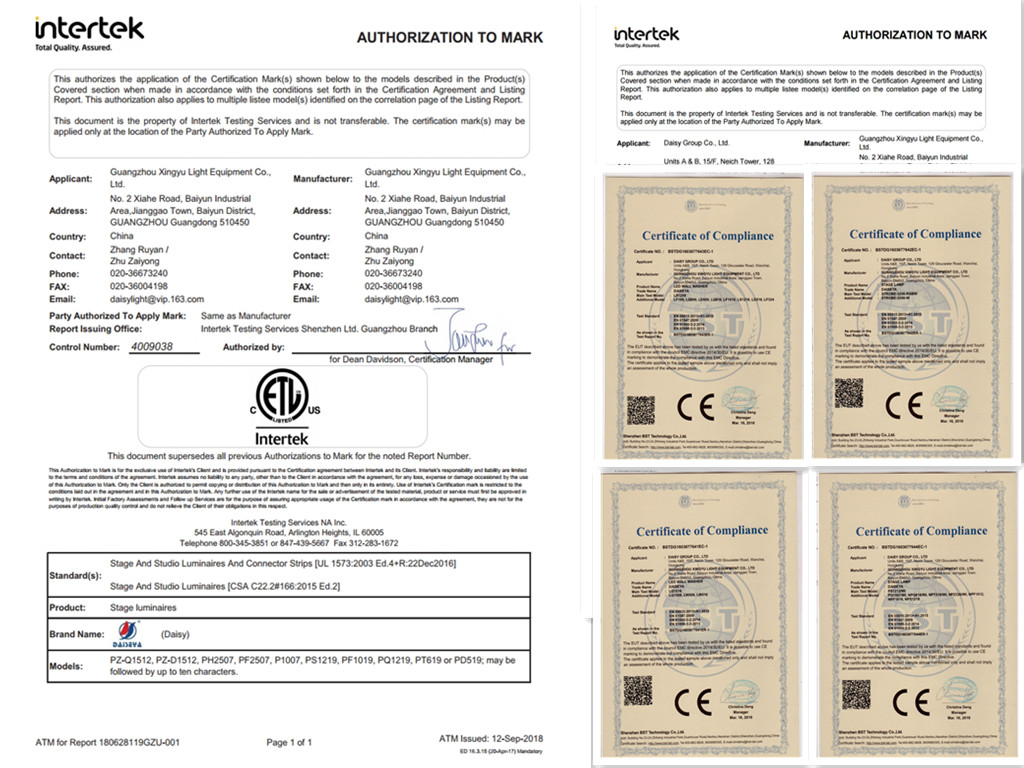

Certification:
