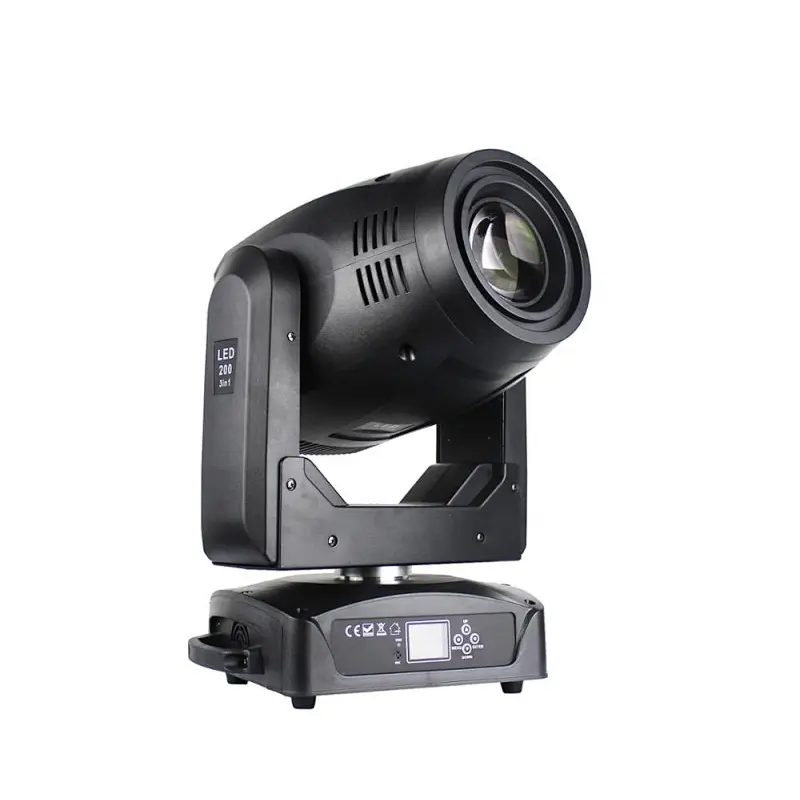

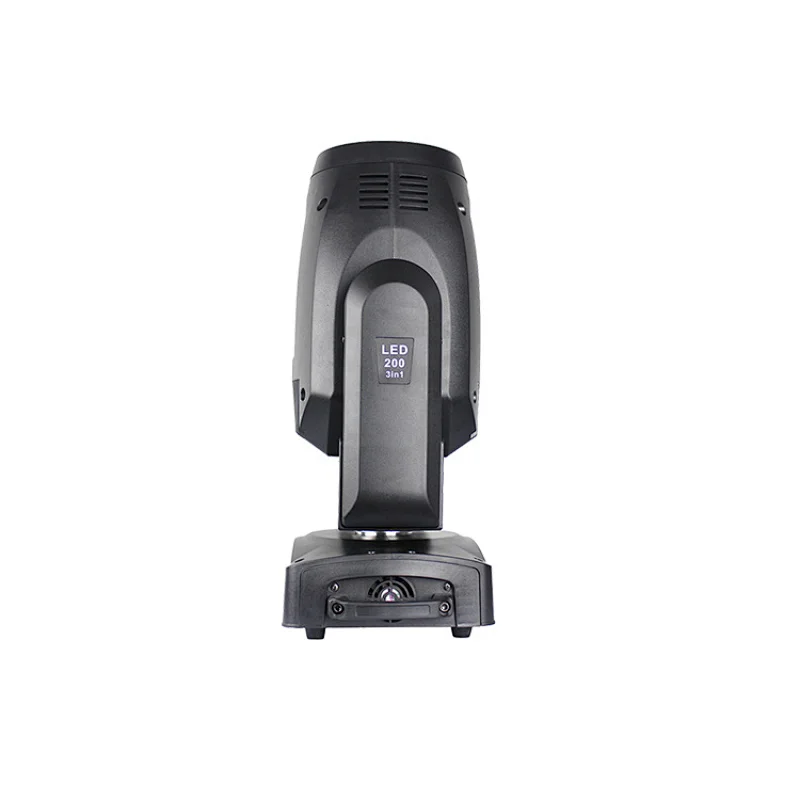

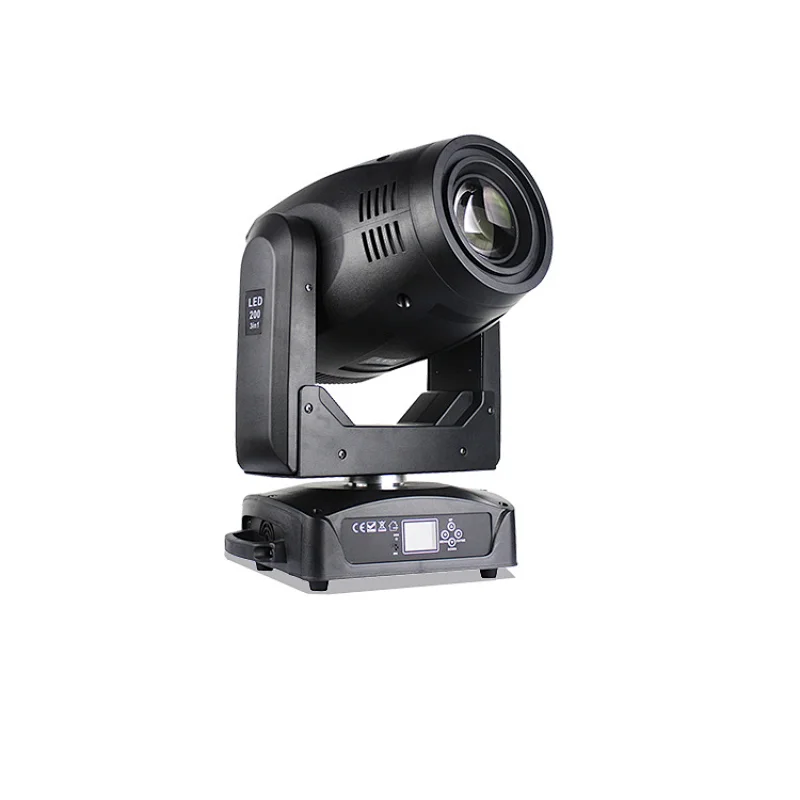

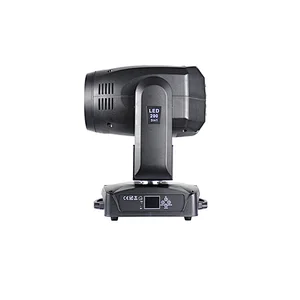

200w led moving head bsw
200w led moving head bsw
200w led moving head bsw
200w led moving head bsw
200w led moving head bsw
200w led moving head bsw
200w led moving head bsw

200w led moving head bsw

Model NO.:
ML-200-BSW
Price:
USD 398.00-435.00 / carton
Minimum order quantity:
1 carton
Supply Ability:
1000 carton / Month
Country of Origin:
SHENZHEN
  • Light Source:LED
  • IP Rating:Ip20
  • Place of Origin:China
  • Input Voltage(V):AC100V-240V/50-60Hz
  • Lamp Power(W):350
  • Brand Name:DAISEYA
  • Model Number:ML-200-BSW

FEATURES

Channel mode:DMX-512, 20/16CH

Color wheel:8 colors+white,split colors,rainbow effect

Rotated gobo wheel :2 glass gobos+4 metal gobos +1 water ripple gobo +white,gobo shake Fixed gobo wheel:9 fixed gobos+white,rainbow effect,gobo shake

Effect wheel 1: animation wheel (adjustable rotating speed and direction)

Effect whee 2:colorful effect wheel +frost effect ( colorful effect wheel adjustable rotating speed and direction)

Effect whee 3:3 facet prism and 8 facet prism,two prisms can be overlapped( adjustable rotating speed and direction)

Zoom: motorized linear zoom Strobe:0-20Hz

Dimmer:Variable electronic dimmer(0-100%) Focus:Variable motorized focus

Control mode:DMX512,Sound,Master/Slave,Auto Pan:540°/360°/180°,8/16 bit movement resolution,automatic correction Tilt:270°/180°/90°,8/16 bit movement resolution,automatic correction Integrated three features:beam,spot and wash



CONSTRUCTION

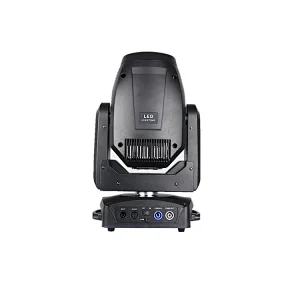

Data in/out:3-pin XLR connector IN/OUT Power in/out:PowerCon IN/OUT Motor:Three-phase motor



SPECIFICATIONS

Power supply:AC 100V-240V 60/50Hz Power consumption:350W

Light source:200W white LED Beam angle:12°-28°N.W:15kg

G.W:17.67kg

Product meas:328*216*520mm Package meas:50.5*41*39.5cm

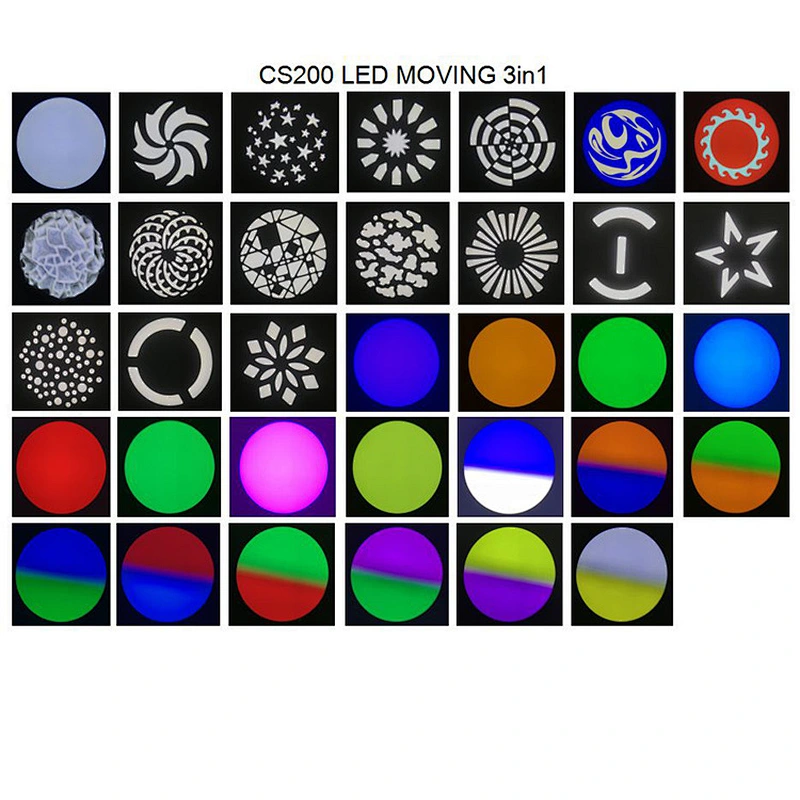

IMG_1523.JPGIMG_1520.jpgIMG_1521.jpgIMG_1527.jpggobo chart.jpg
