- Light Source:LED
- IP Rating:Ip20
- Place of Origin:China
- Input Voltage(V):AC100V-240V/50-60Hz
- Lamp Power(W):375
- Working Lifetime(Hour):2000
- Brand Name:DAISEYA

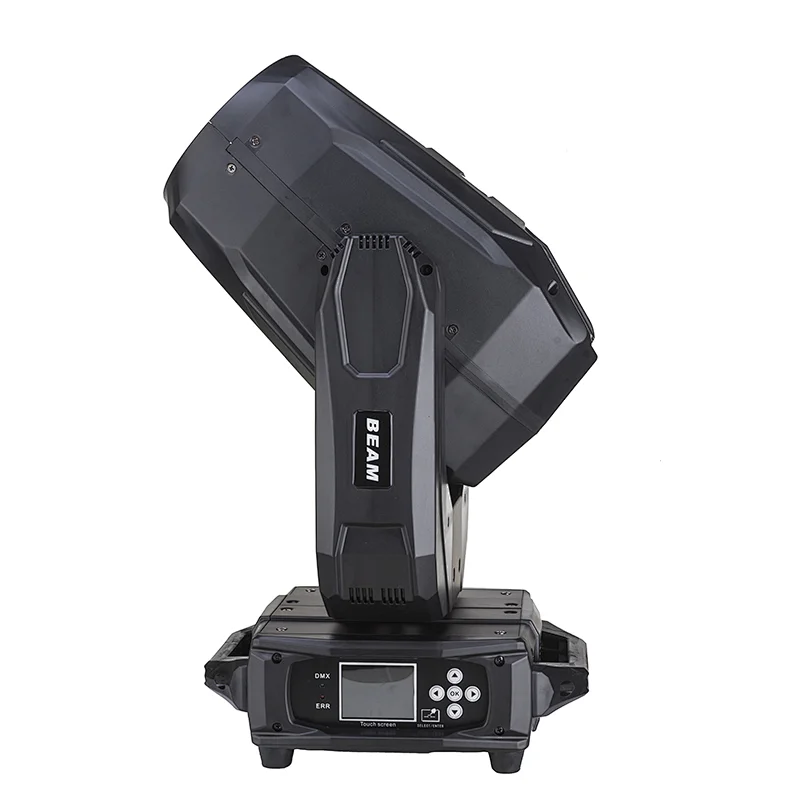

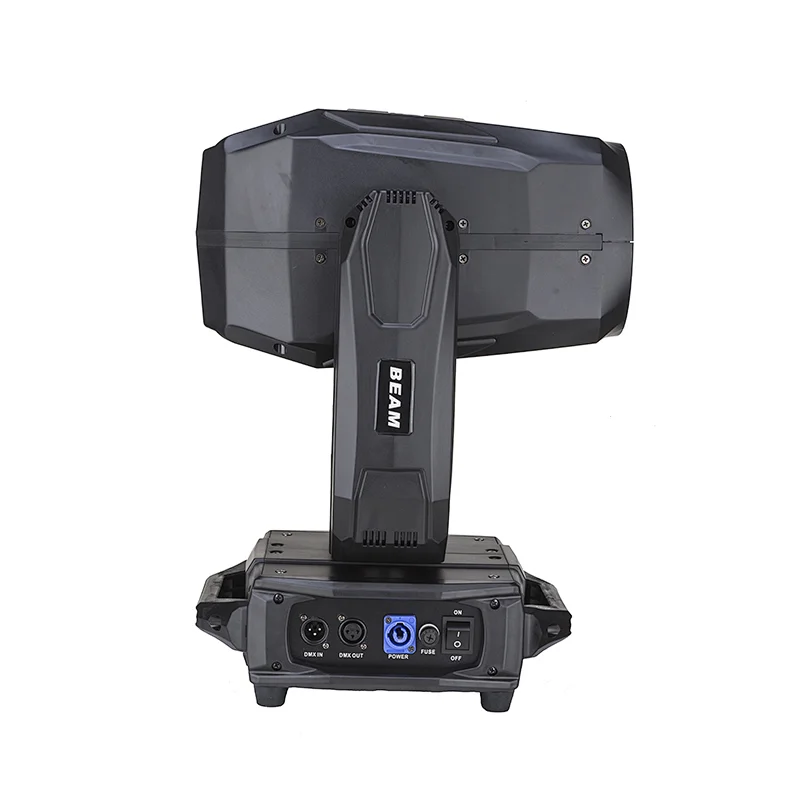

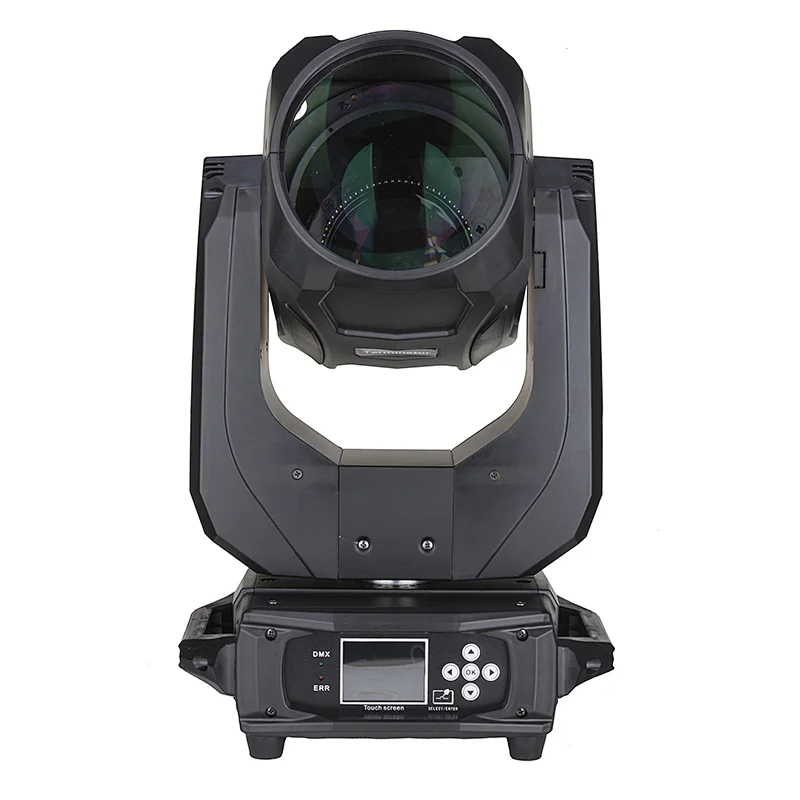

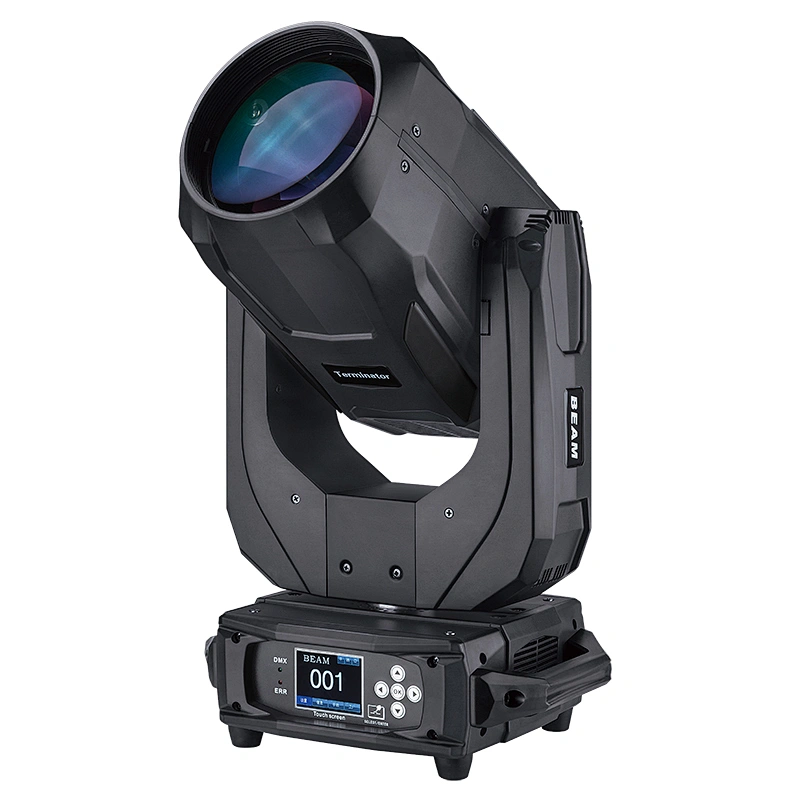

- Model Number:260W Beam Moving Head Light
Technical Parameters:
Input Voltage(V): | AC100V-240V/50-60Hz |
Total Power: | 375W |
Fuse: | 7A |
Ballast: | Electrical |
Lamp: | PHOENIX |
Lamp Power: | 260w |
Color Temperature(CCT): | 8500K |
Average lifetime: | 2,000 hour (pack lamp & reflection cup to lengthen lifetime) |
Control Signal: | DMX512 |
Control mode: | International Standard DMX512, Automatic,Master/Slave Mode |
Color Temperature: | 8500K |
Channel: | 18CH |
Dimming: | 0-100% mechanical dimming, mechanical dimming and free dimming available. |
Beam angle: | 0-3.8 degree |
Motors: | 14 super mute motors, XY three-phase motor |
Fixed color: | 11 color + white,(halftone effect adjustment) |
Prisms: | 8-facet prism + Honeycomb prism (2 prisms can be superimposed to 40, can be two-way independent rotation) |
Frost/Atomization: | independent frost effect, spot soft and natural |
Body Color: | black |
IP Rate: | IP20 |
Size: | 310*240*580mm |
N.W.: | 14.8Kg |
Function introduction:
1.Standard control signal: DMX512
2.LCD: LCD 65 million color touch TFT interface, easy to operate, high-definition screen, the interface can be 180 degrees reverse display.
3.Scanning speed: X to 2.6 seconds/540 degrees, Y to 1.24 seconds/270 degrees (16Bit precision scan), Automatic calibration positioning, fast & stable & noiseless.
4.Strobe: two-piece strobe (0.5-9 times / sec), complete linear dimming and variable strobe speed.
5.Color wheel: with 14 colors + blank (to create a sharp beam effect)
6.Gobo: 17 fixed patterns + blank (change the shape of beam)
7.Prisms: 8-facet prism + Honeycomb prism.
8.Adjustable rotating angle, max. opening angle of 60 degrees, combined with the pattern function can be
9.achieved separately: 8 +24 +48 beam effect(switchable) ,with two-way independent slow/fast rotation function.
10.Frost: Soft light effect, easy to achieve the effect of soft and fantasy pattern
11.Focus: 3 sets optical lens combination, beam effect is much better than normal ones,can cast a high-definition pattern
12.Beam angle: 0-3.8 degree
13.Other: Overheating intelligent protection.
14.Intelligent light bulb switch control (to extend the lamp lifetime)
