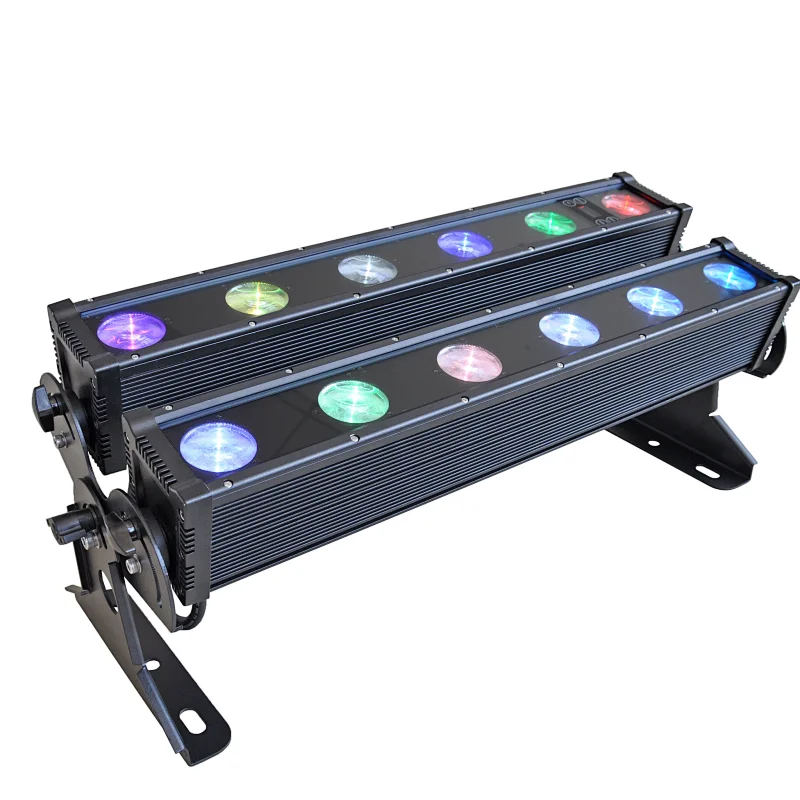

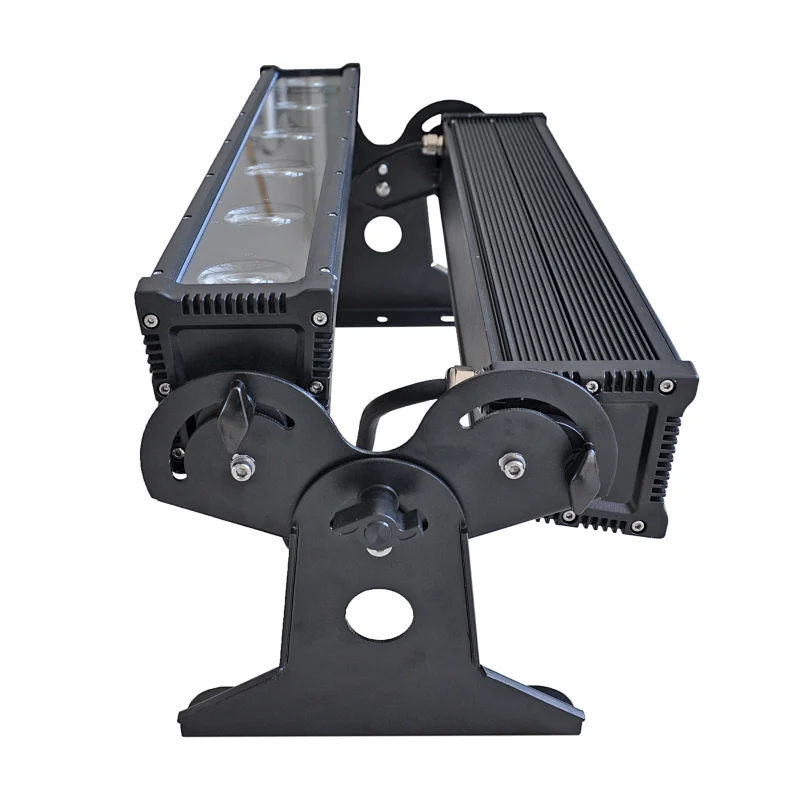

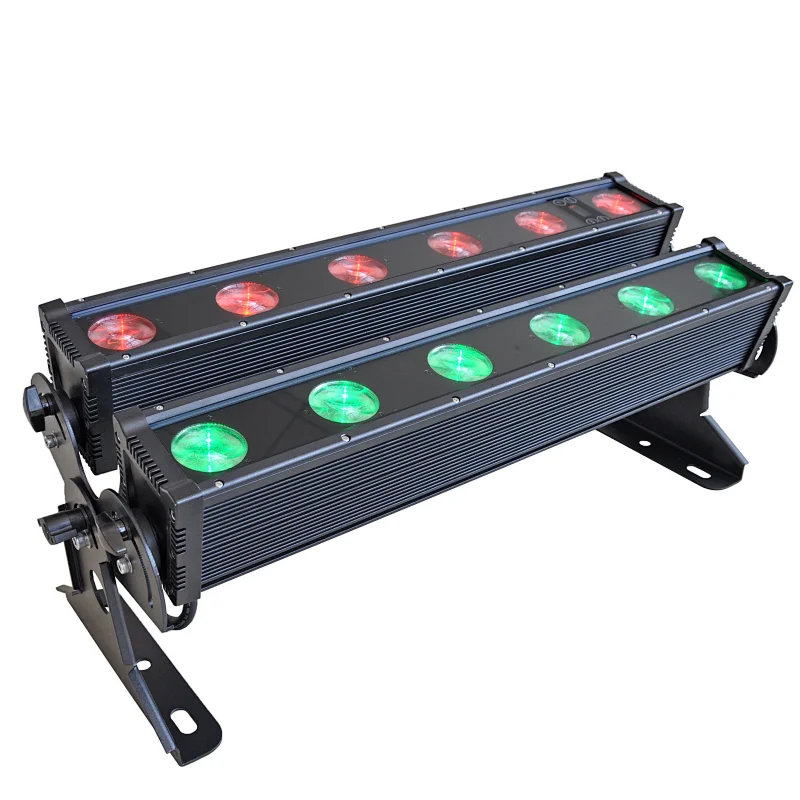

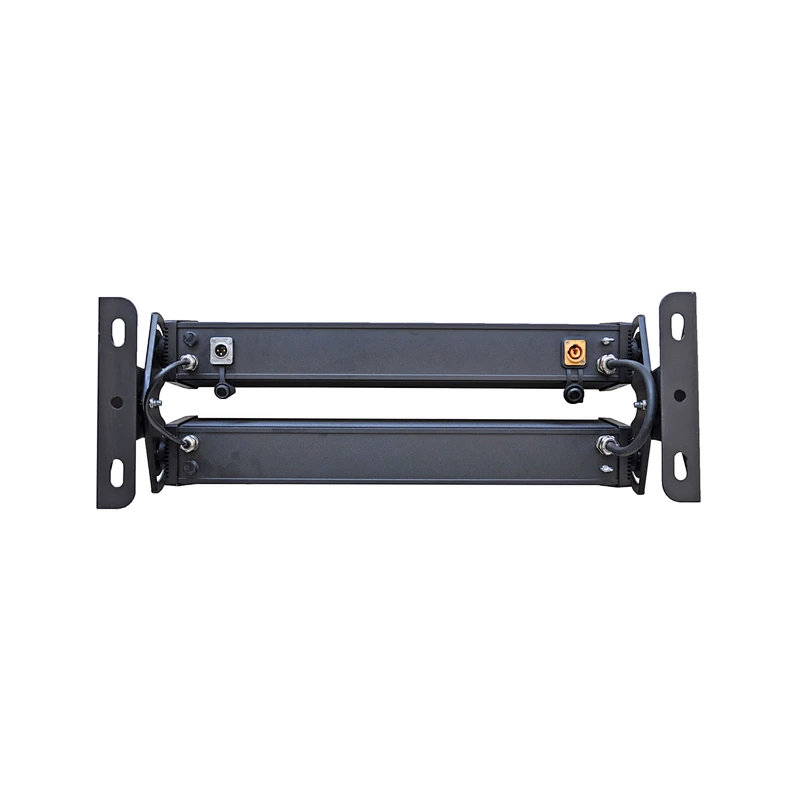

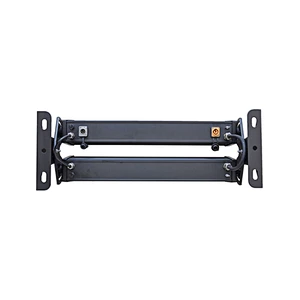

DMX Pixel RGBW LED Wall Washer Stage Light beam IP67 LQ1512-MATRIX
DMX Pixel RGBW LED Wall Washer Stage Light beam IP67 LQ1512-MATRIX
DMX Pixel RGBW LED Wall Washer Stage Light beam IP67 LQ1512-MATRIX
DMX Pixel RGBW LED Wall Washer Stage Light beam IP67 LQ1512-MATRIX
DMX Pixel RGBW LED Wall Washer Stage Light beam IP67 LQ1512-MATRIX
DMX Pixel RGBW LED Wall Washer Stage Light beam IP67 LQ1512-MATRIX
DMX Pixel RGBW LED Wall Washer Stage Light beam IP67 LQ1512-MATRIX
DMX Pixel RGBW LED Wall Washer Stage Light beam IP67 LQ1512-MATRIX
DMX Pixel RGBW LED Wall Washer Stage Light beam IP67 LQ1512-MATRIX
DMX Pixel RGBW LED Wall Washer Stage Light beam IP67 LQ1512-MATRIX
DMX Pixel RGBW LED Wall Washer Stage Light beam IP67 LQ1512-MATRIX

DMX Pixel RGBW LED Wall Washer Stage Light beam IP67 LQ1512-MATRIX

Model NO.:
LQ1512-MATRIX
Price:
USD 263.00-289.00 / piece
Minimum order quantity:
1 piece
Supply Ability:
1000 piece / Month
Country of Origin:
SHENZHEN OR HUANGPU
Quantity:
  • Light Source:LED
  • Item Type:Wall Washers
  • Warranty(Year):1-year
  • Lamp Body Material:Aluminum
  • IP Rating:IP65
  • Certification:ce
  • Certification:LVD
  • Certification:RoHS
  • Application:LANDSCAPE
  • Input Voltage(V):AC 100V-264V/47-63HZ
  • Working Temperature(℃):1 - 45
  • Working Lifetime(Hour):100000
  • Place of Origin:CHINA
  • Brand Name:DAISEYA
  • Model Number:LQ1512-MATRIX
  • Beam angle:6°
  • color effect:15W LED 4-in-1 R,G,B,W(12PCS)
  • Consume:180W
  • IP Rate:IP65

3.Product Description.jpg

LQ1512-Matrix(Double Head)

Ø Input voltage: AC 100V-264V/47-63HZ

Ø Consume:180W

Ø Lamp Type:15W LED 4-in-1 R,G,B,W(12PCS)

Ø Life span: 50000~100000hours

Ø PWM Dimmer:4300Hz(16666 grades)

Ø Control Signal:DMX512

Ø Control mode:stand alone/master/slaver

Ø Pixel control

Ø Channel:56CH,48CH,24CH,24CH,24CH-2,20CH,20CH-2,16CH,10CH,5CH,4CH

Ø Angle:6 degree

Ø Function Effect: dimmer, strobe, gradual change, auto effect

Ø  Touch buttons, automatic lock key

Ø Built-in temperature control measurement function, when LED work overheated, intelligent reduce LED output power, current power output can be viewed

Ø Cooling mode: Natural Convection

Ø Anti-electricity intension:1.5KV

Ø Insulation Resistance:>2

Ø IP Rate: IP65
