- Light Source:LED
- IP Rating:Ip20
- Place of Origin:China
- Input Voltage(V):AC100V-240V/50-60Hz
- Lamp Power(W):530
- Working Lifetime(Hour):2000
- Brand Name:DAISEYA

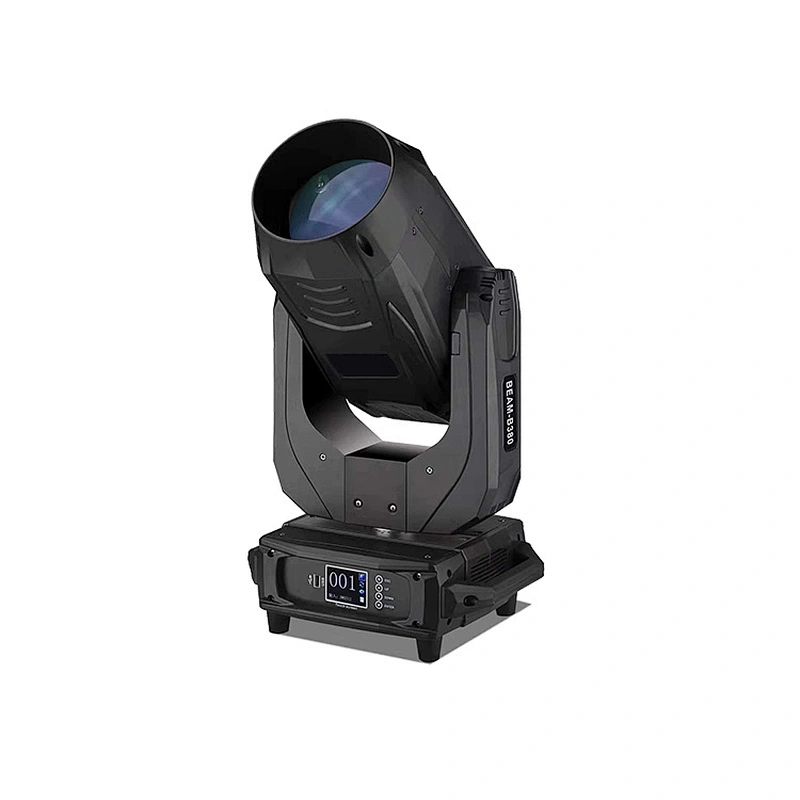

- Model Number:380W Pure Beam Light
Technical Parameters:
Power supply: AC100V-240V
Frequency: 50Hz-60Hz
Total power: 600W
Fuse: 7A
Ballast: Electronic Ballast
Light source: Japanese Phoenix bulb
Lamp power: 380W
Color temperature: 7800K
Average life: 1500H (bulb and reflector complete package, longer luminous efficiency and longer service life)
Number of motors: a total of 14 silent motors, XY three-phase motors
Dimming: 0-100% linear adjustment.
Fixed color: 14 color patches + white light (half color effect)
Static pattern: 11 fixed images + white light + 3 glass patterns
Prism: 8+8+8 honeycomb prism, 16 prism (double prism can be superimposed 40, can rotate independently in both directions)
Color film: 1 six-color film (can do colorful effects)
Atomization: 1 independent atomization effect, the spot is soft and natural
Control channel: 18CH channel
Size: 32*22*58 (length * width * height)
Control signal: international standard DMX512
Appearance: high temperature resistant plastic
Light body color: black
Protection level: IP20
Net weight: 15.5kg
Function introduction:
1.International standard control signal: DMX512
2.Channel: 18CH channel
3.Number of motors: a total of 14 silent motors
4.LCD 650,000 color touch TFT interface, easy to operate, beautiful interface, the interface can be reversed 180 degrees display.
5.The X axis rotates 540 ° C horizontally, and the Y axis rotates 270°C vertically with automatic correction positioning.
6.X, Y axis operation can be adjusted and adjusted, software with correction positioning function, high precision!
7.Dimming: 0-100% linear adjustment.
8.Strobe: two-chip strobe (0.5-9 times / sec), full linear dimming and variable stroboscopic speed.
9.Color wheel: with 14 colors + blank (can create a sharp aerial beam effect)
10.Pattern wheel: with 13 fixed pattern pieces + blank (allows you to quickly change the shape of the beam)
11.Prism: Rotating the octagonal prism, it can rotate in both directions, and the rotation speed can be adjusted to make the pattern projection effect more abundant.
12.Atomization: Soft light effect, easy to achieve a soft and dreamy pattern effect.
13.Focusing: With 2 sets of optical lens combination, the effect is much better than the usual beam light, which can project high-definition patterns.
14.Beam angle: parallel beam angle: 0-3.8
15.Overheating intelligent protection
16.Smart light bulb switch control (Extend lamp life)
