- Place of Origin:CN;GUA
- Brand Name:Daisy
- Model Number:S1212
- Application:Stage Prerformance
- Material:Aluminum Alloy 6082-T6/6061-T6

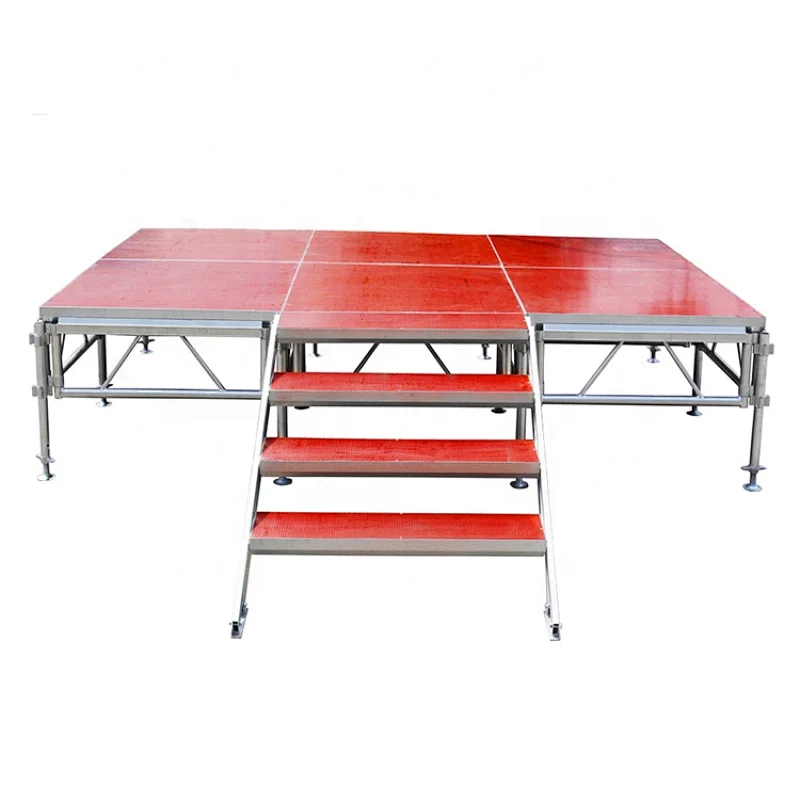

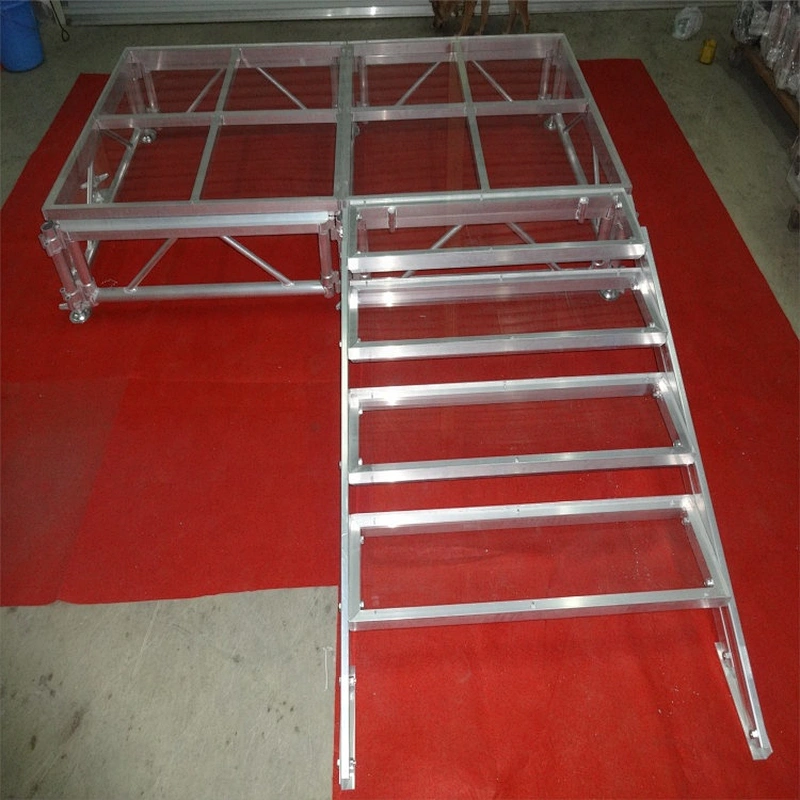

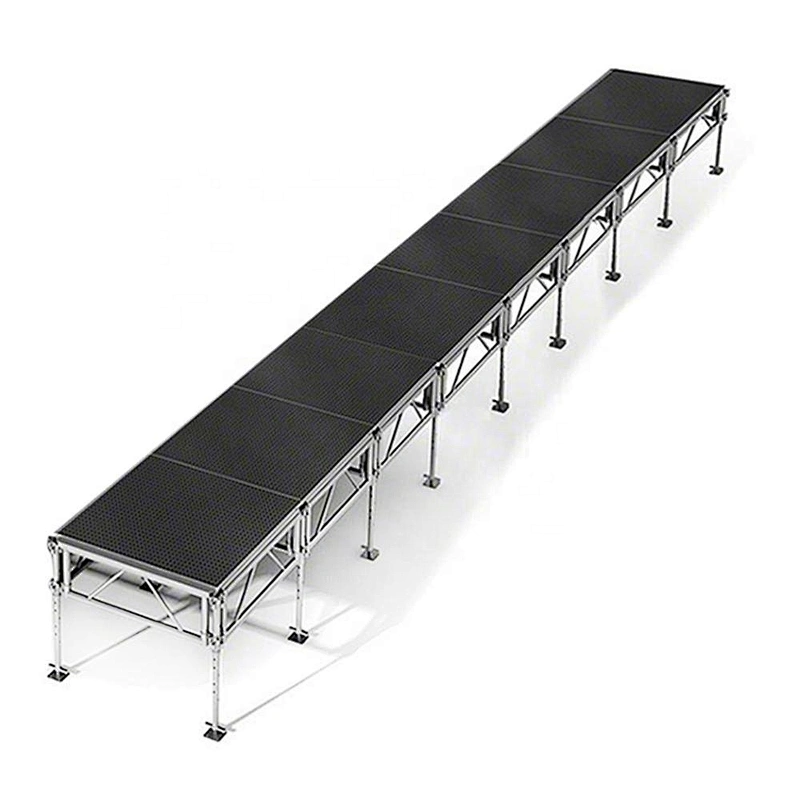

- Product Name:Aluminum Assemble Stage
- Adjustable height:0.6-0.8-1.0m
- Main tube:50mm*3mm
- Keywords:Outdoor Concert Stage Truss Project
Aluminum Stage Features:
1.Components: stage panel, stage frame, lifting tube and adjustable base.
2.Stage panel: anti-slip and anti-water plywood, tempered galss and plywood with carpet and so on.
3.Plywood thickness: 18mm anti-slip.
4.Loading capacity: 1220x1220mm stage can be reach 500kgs/m2.
5.the stage height and shape can be produced according to your requirement.
Specifications:
| Material | Aluminum alloy 6082-T6 |
| Feature | Quickly assemble,stable |
| Leg main tube | 50x3mm |
| Brace tube | 50x2mm |
| Frame size | 60*33*2mm |
| Certificate | ISO, CE, TUV, SGS |
Application
| Events,party,concert,exhibiton ,catwalk fashion show,school, church,wedding,etc. |
| Dimension | Max. Loading | Max. Height | Min. Height |
| 1m*1m | 950kg | 1400mm | 300mm |
| 1.22m*1.22m | 950kg | 1400mm | 300mm |
| 1m*2m | 950kg | 1400mm | 300mm |
| 1.22*2.44m | 950kg | 1400mm | 300mm |
Daisy stage has developed a broad range of trusses and a unique system to connect them, Spigot connection truss, we are designed to make them suitable for a variety of applications, from a simple led screen truss or exhibition booth to big stage truss structures prepared for high loading.
Daisy stage truss in different sizes, length and shapes, including straight lengths, corners and curves; all designed and manufactured according to European standard EN13814 and welding EN1090 , we give you loading date, user manual and video to teach you how to use these truss .
Advantage:
1. Spigot connection way, easily and quickly installation
2. 12500 square meters factory, make sure delivery time
3. Cooperate with supplier over 5 years, keep quality stable
4. Aluminum material report by SGS
5. TUV & CE certificate
6. Factory audited by SGS
7. Get ISO 9001: 2008 quality manage system
